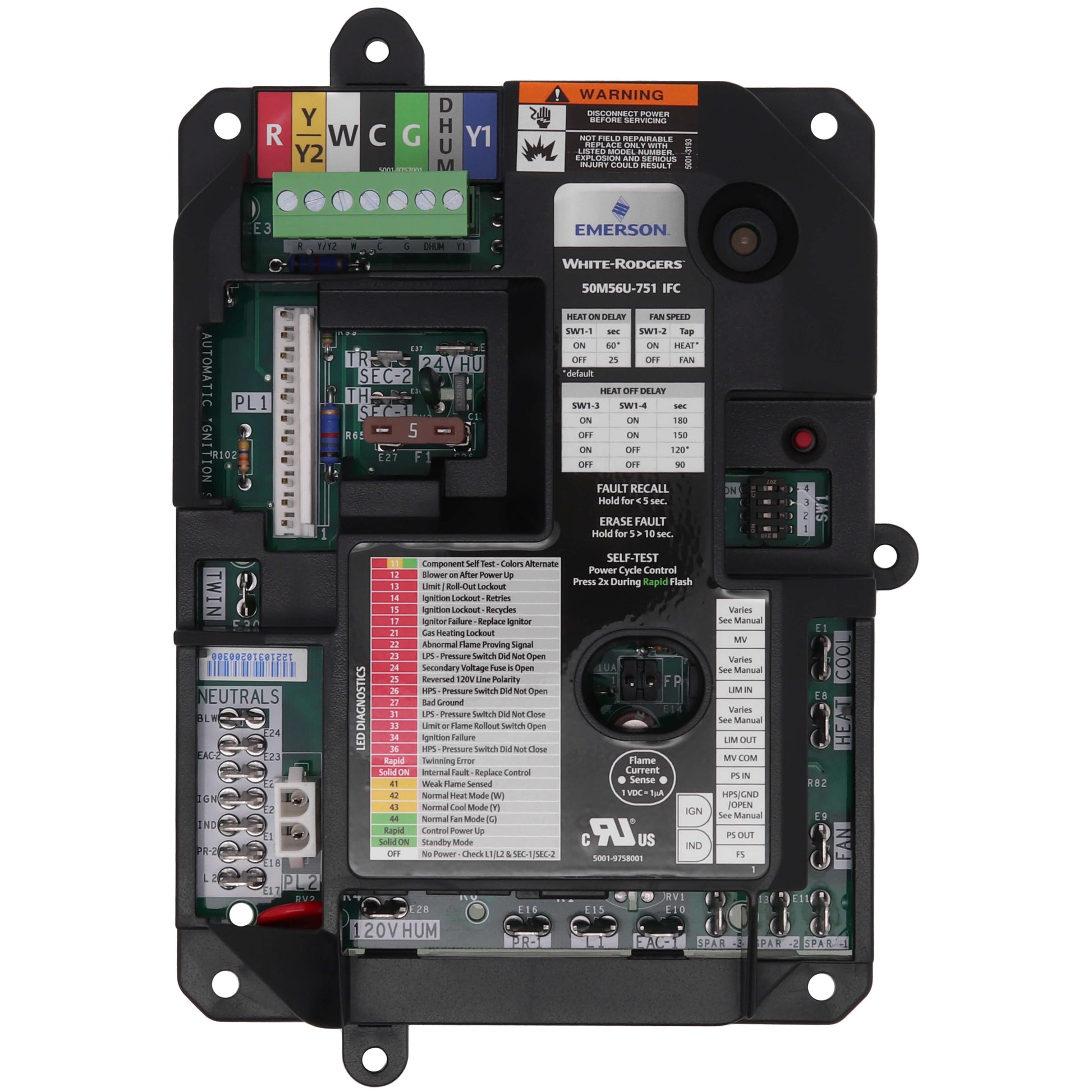

White-Rodgers 50M56U-751 | Integrated Furnace Control Kit

The White-Rodgers 50M56U-751 Integrated Furnace Control Kit is a versatile and reliable solution designed for controlling furnace systems. It features a range of customizable settings and outputs, ensuring efficient operation and ease of installation.

Key Features:

• System Diagnostic LED: Provides fault recall for easy troubleshooting.
• Low-Speed Continuous Fan Option: Offers added flexibility for fan operation.
• Multiple Output Options: Includes 120 VAC igniter output, electronic air cleaner output, and 120 or 24 VAC humidifier output.
• Self-Test Installation Routine: Simplifies installation with an automatic self-test feature.
• Carrier/ICP direct replacement IFC for 1-Stg 120V HSI/PSC blower

Specifications:

• Voltage Rating: 25 VAC
• Amperage Rating: 0.45 A
• Frequency Rating: 50/60 Hz
• Time Delay: 17 sec (Warm Up), 30 sec (Pre Purge), 60 min (Reset)
• Temperature Rating: -40 to 175°F
• Dimensions: 5-1/4" W x 7" H x 1-1/4" D
• Relay Ratings:
• Valve Relay: 1-1/2 A at 25 VAC 50/60 Hz 0.6 pf
• Igniter Relay: 6 A at 120 VAC 50/60 Hz (resistive)
• Inducer Relay: 2.2 FLA - 3.5 LRA at 120 VAC
• Circulator Relay: 14.5 FLA - 25 LRA at 120 VAC
