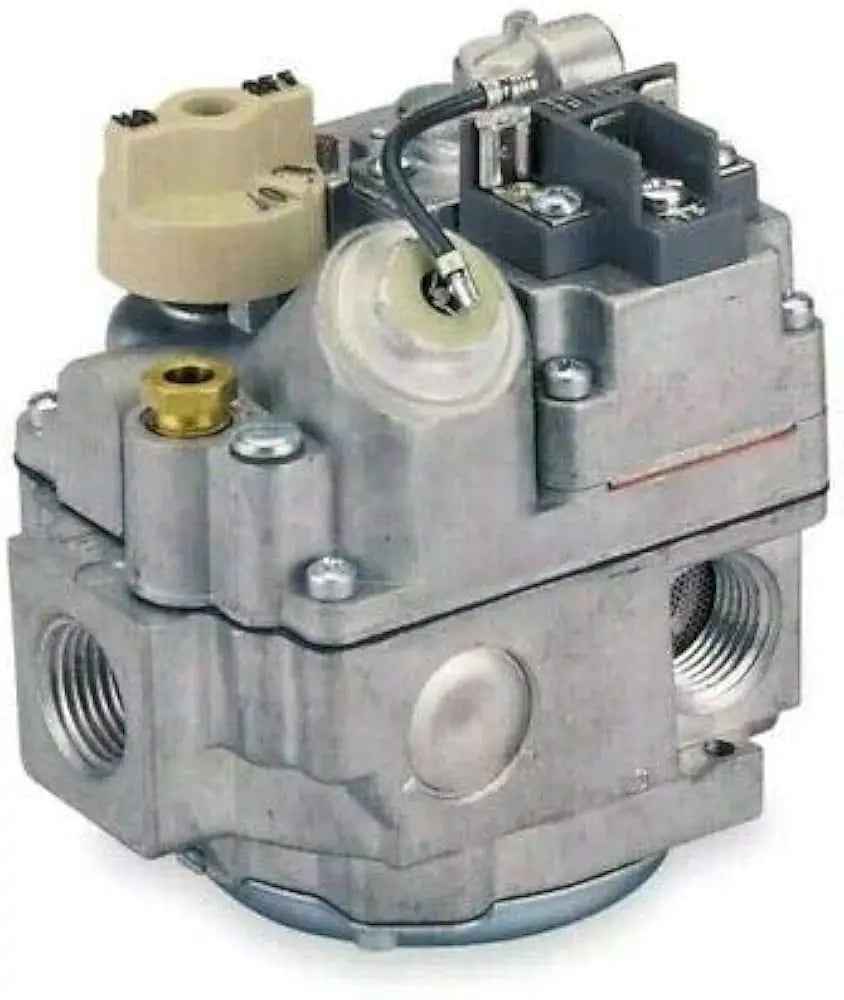

Robertshaw 700-506 | Millivolt Combo Gas Valve, 3/4" x 3/4", 300,000 BTU

The Robertshaw 700-506 is a millivolt-operated combination gas valve designed for use with wall thermostats and standing pilot ignition systems. It integrates a manual gas cock, automatic pilot safety valve, and millivolt operator into a single control. The automatic pilot safety shuts off gas in the event of a pilot outage, ensuring safe operation. This valve can be mounted in any position except upside down and includes standard features to support safe, reliable gas flow management.

Key Features:

• Wall thermostat-actuated combination gas valve
• Includes manual gas cock, automatic pilot safety, and millivolt operator
• Automatic pilot safety shuts off gas if pilot flame goes out
• Standard features include pilot outlet, pilot gas filter, and pilot adjusting key
• Can be mounted in any position except upside down
• Available in regulated and non-regulated models

Technical Specifications:

• Fuel Type: Natural Gas
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Ignition Type: Standing Pilot
• Pressure Regulator Setting: 3.5" W.C. (Natural Gas)
• Side with Plugs: Straight Thru
• Capacity: 300,000 BTU
