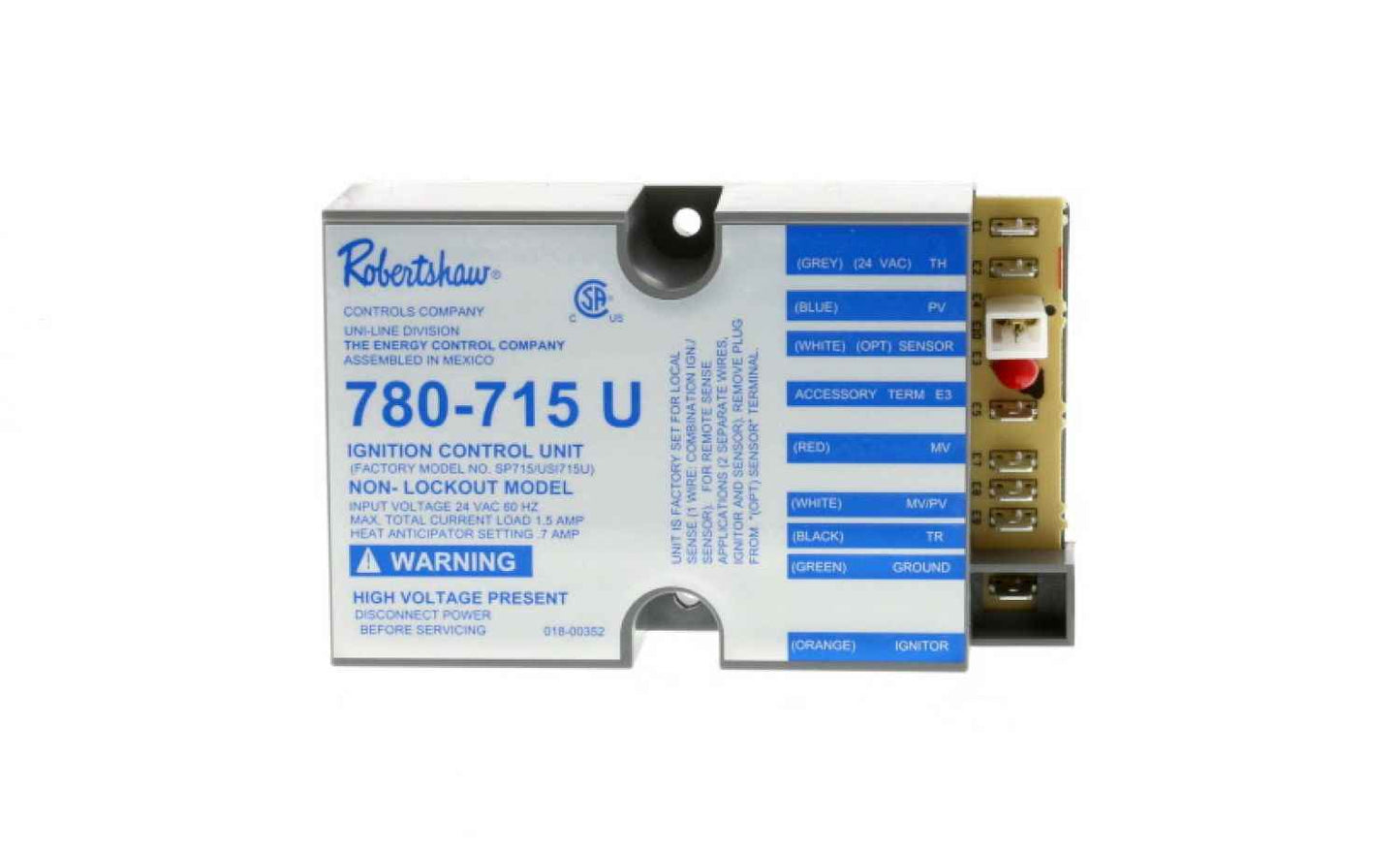

Robertshaw 780-715 | Uni-Kit Ignition Control, 24 VAC, 1.5 A, 50/60 Hz

The Robertshaw 780-715 Uni-Kit Ignition Control delivers safe, automatic ignition and flame sensing for both 1-rod (local sense) and 2-rod (remote sense) pilot applications. In the event of flame failure, the automatic recycle function disables the main gas and initiates a new spark sequence. Main gas flow resumes only after the pilot flame is successfully re-established, providing continuous protection and operation.

Key Benefits:

• Universal flame sensing – compatible with local or remote applications
• Automatic re-ignition – disables main gas and restarts ignition on flame loss
• Compact stocking solution – reduces inventory by covering multiple models
• Installer-friendly – includes in-depth instructions for easy setup

Performance Ratings:

• Spark Rate: 3–4 seconds per spark
• Flame Sense Current: 0.7 mA DC @ 25°C
• Flame Re-ignition Time: 0.8 seconds
• Thermostat Anticipator Setting: 0.7 A
• Transformer Load: 20 VA @ 24 VAC
• Pilot & Main Valve Draw: 1 A @ 0.5 power factor
• Combined Load: 1.5 A @ 0.4 power factor

Electrical & Environmental Specs:

• Voltage: 24 VAC
• Current Rating: 1.5 A
• Frequency: 50/60 Hz
• Operating Temperature: –40°F to 175°F
• Humidity Rating: 95% RH (non-condensing at 104°F)
• Series: 780 Series
