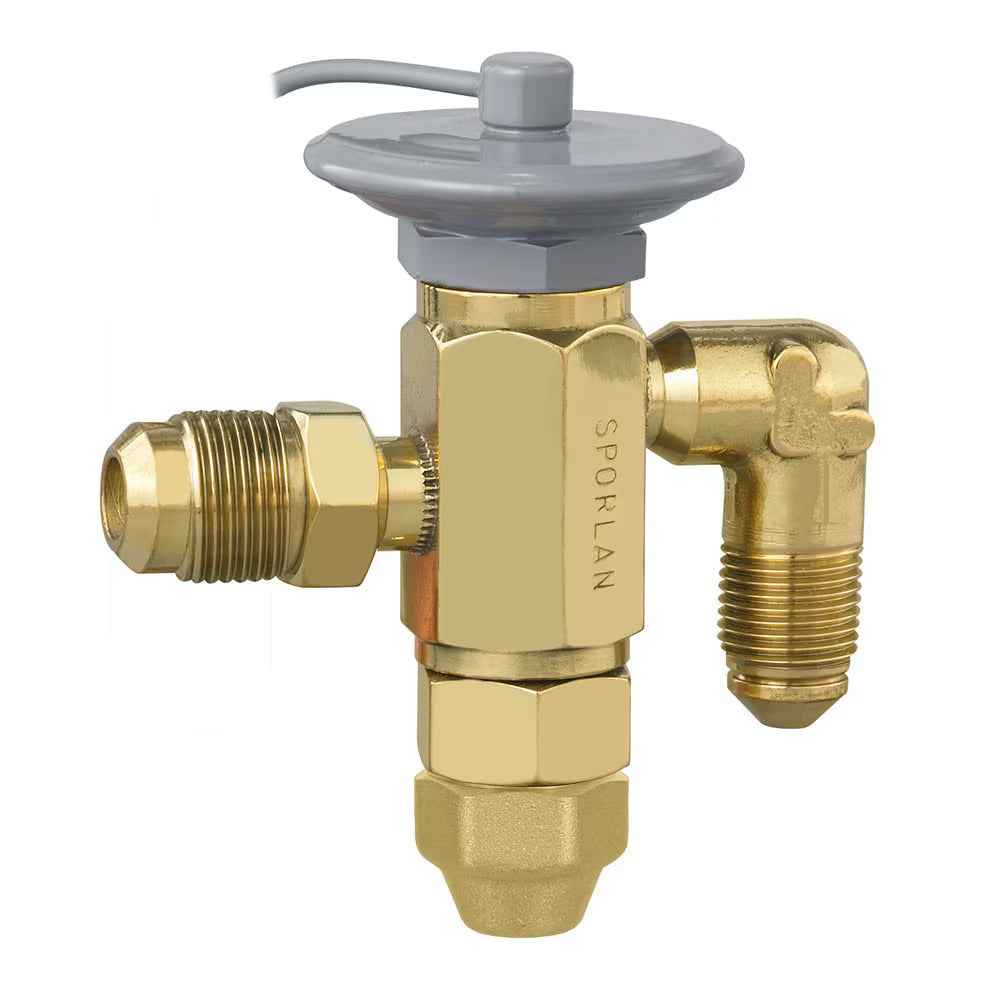

Sporlan BQ | Body TEV 1/4" x 1/2" SAE Internal Equalizer Balanced Port Elbow Inlet

The Sporlan BQ Body TEV is a thermostatic expansion valve designed for air conditioning and refrigeration systems with a wide range of operating conditions. Featuring a 3-piece externally adjustable brass body, replaceable element, and cartridge, this valve ensures reliable performance in both commercial and low-temperature refrigeration systems. Its balanced port construction with a straight-thru body and elbow inlet makes it suitable for various applications.

Specifications:

• Connections: 1/4" x 1/2" SAE
• Equalizer: Internal
• Element Size: 43
• Height: 2.8"
• Length: 4.0"
• Width: 3.5"
• Weight: 0.70 lbs per unit
• Model: BQ BODY
• Sporlan Number: 168191

Features:

• Externally adjustable with replaceable element
• Balanced port construction for stable operation
• Straight-thru body with elbow inlet design
• Ideal for systems with wide operating conditions
• Internal equalizer for consistent control

Applications:

• Air conditioning
• Commercial refrigeration (+50°F to -10°F)
• Low-temperature refrigeration (0°F to -40°F)
