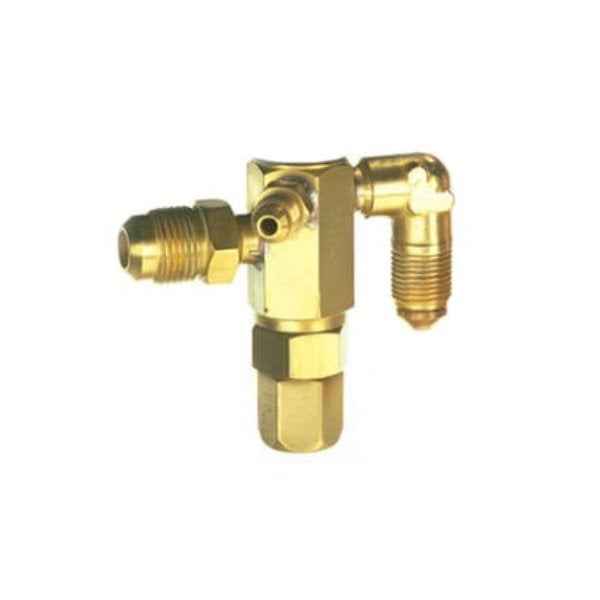

Sporlan BQE-BODY-3X4X2 SAE | Thermostatic Expansion Valve Body

The Sporlan BQE-BODY-3X4X2 SAE Thermostatic Expansion Valve Body is designed for air conditioning and refrigeration systems with a wide range of operating conditions. Featuring a 3-piece externally adjustable brass body, replaceable element, and cartridge, it ensures reliable performance across both commercial and low-temperature refrigeration applications. The balanced port construction with a straight-thru body and elbow inlet allows for efficient operation.

Specifications:

• Connections: 3/8" x 1/2" x 1/4" SAE
• Equalizer: External
• Element Size: 43
• Port Size: 1/4"
• Model: BQE BODY
• Sporlan Number: 168183

Features:

• Externally adjustable with replaceable element
• Balanced port construction for consistent performance
• Straight-thru body with elbow inlet design
• Ideal for systems with varied operating conditions

Applications:

• Air conditioning systems
• Commercial refrigeration (+50°F to -10°F)
• Low-temperature refrigeration (0°F to -40°F)
