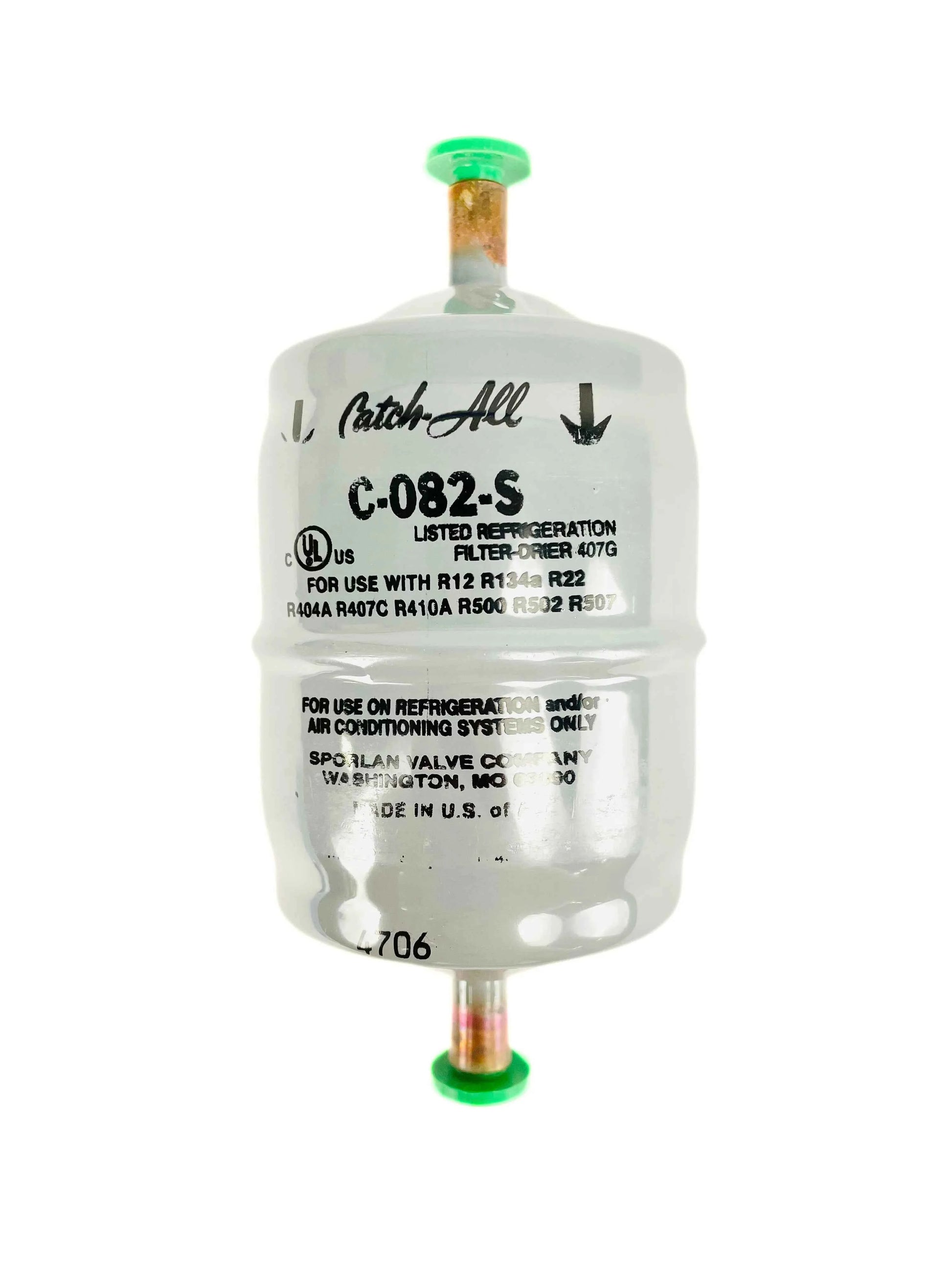

Sporlan C-082-S | Catch-All Filter-Drier, 1/4" ODF Liquid Line

The Sporlan C-082-S Catch-All Filter-Drier efficiently removes moisture, acid, and contaminants like scale, sludge, and dirt from HVAC systems. With a leak-proof shell, solid copper fittings, and a desiccant core, it ensures reliable performance with minimal pressure drop.

Specifications:

• Model: C-082-S 1/4 Copper Conn
• Capacity: 9 cu in
• Connection Size: 1/4" x 1/4" ODF
• Diameter: 2.62"
• Height: 2.8"
• Length: 7.1"
• Overall Length: 5.12"
• Weight: 1.02 lbs per unit
• Series: Catch-All
• Maximum Working Pressure: 650 psi
• Refrigerant Compatibility: For all commercially available HCFC and HFC refrigerant/lubricant combinations
• UL Listed

Features:

• Leak-proof shell
• Solid copper sweat fittings
• Outlet safety filter
• Molded porous core for efficient acid and moisture containment
• Filters scale, sludge, dirt, and foreign matter with minimal pressure drop
• Designed for capillary tube systems
• Schrader-type pressure tap on the inlet

Applications:

• Liquid line filtration in HVAC systems
• Ideal for commercial refrigeration and air conditioning systems
