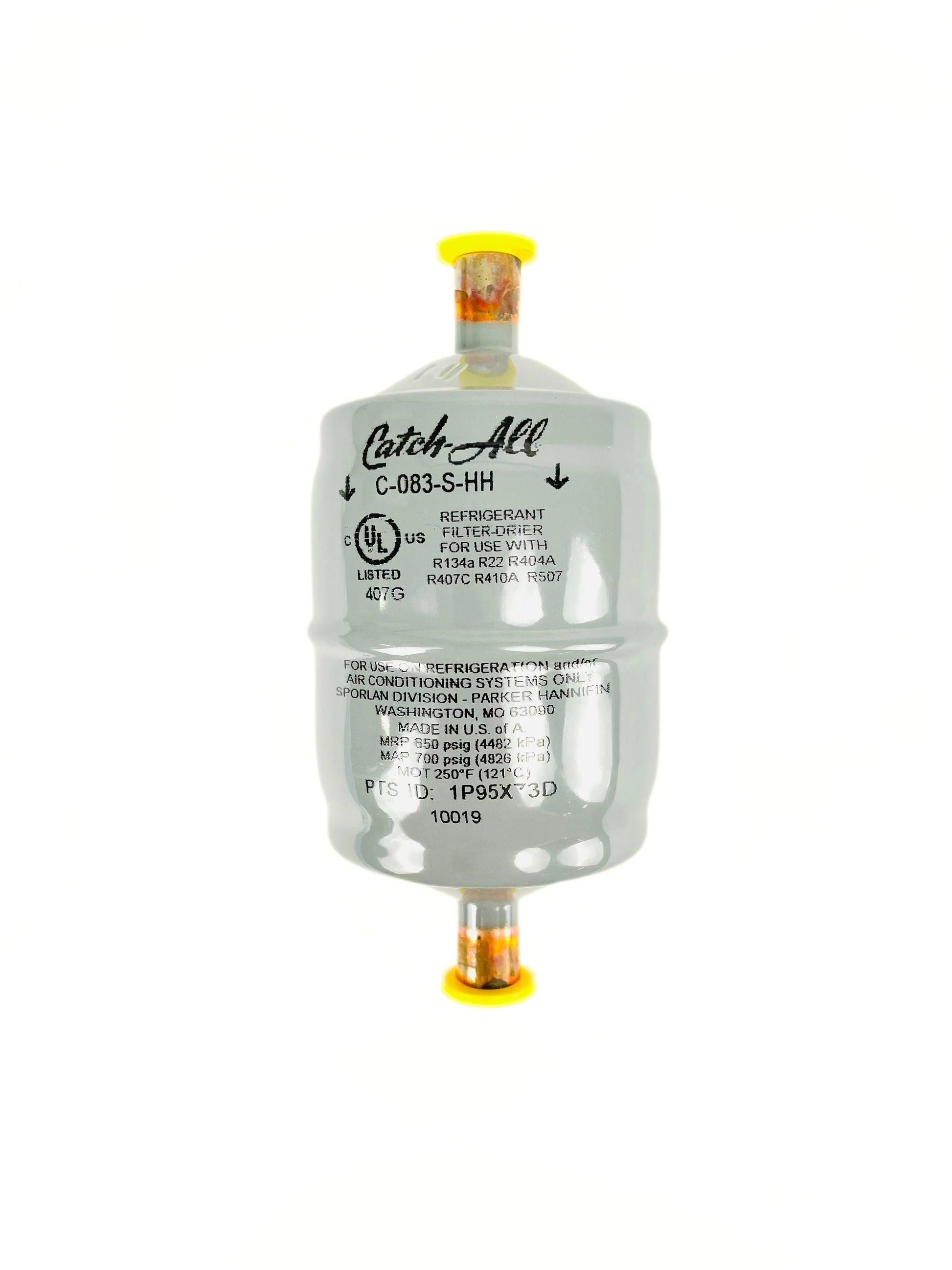

Sporlan C-083-HH | Catch-All Liquid Line Filter-Drier

The Sporlan C-083-HH Catch-All Liquid Line Filter-Drier is designed to effectively remove moisture, acids, dirt, and sludge from HVAC&R systems, ensuring optimal performance and protecting key components.

Specifications:

• Capacity: 9 cu in
• Connection Type: SAE
• Connection Sizes: 3/8" x 3/8"
• Model: C-083-HH
• Maximum Pressure: 650 psi
• Refrigerant Compatibility: HCFC and HFC refrigerants
• Pressure Tap: Schrader type pressure tap (T series)

Features:

• Leak-Proof Shell: Prevents refrigerant leaks.
• Copper Sweat Fittings: Durable and reliable connections.
• Outlet Safety Filter: Protects downstream components.
• Molded Porous Core: Blended desiccants remove moisture, acid, dirt, and sludge.
• Negligible Pressure Drop: Filters contaminants without reducing efficiency.
• Wax Removal: Ideal for capillary tube systems.
• Activated Charcoal: Enhances moisture and acid removal.

Applications:

• Moisture & Acid Removal: Absorbs and retains moisture and acid.
• Contaminant Filtration: Removes dirt, sludge, and other particles.
• Capillary Tube Systems: Optimized for systems with capillary tubes.
