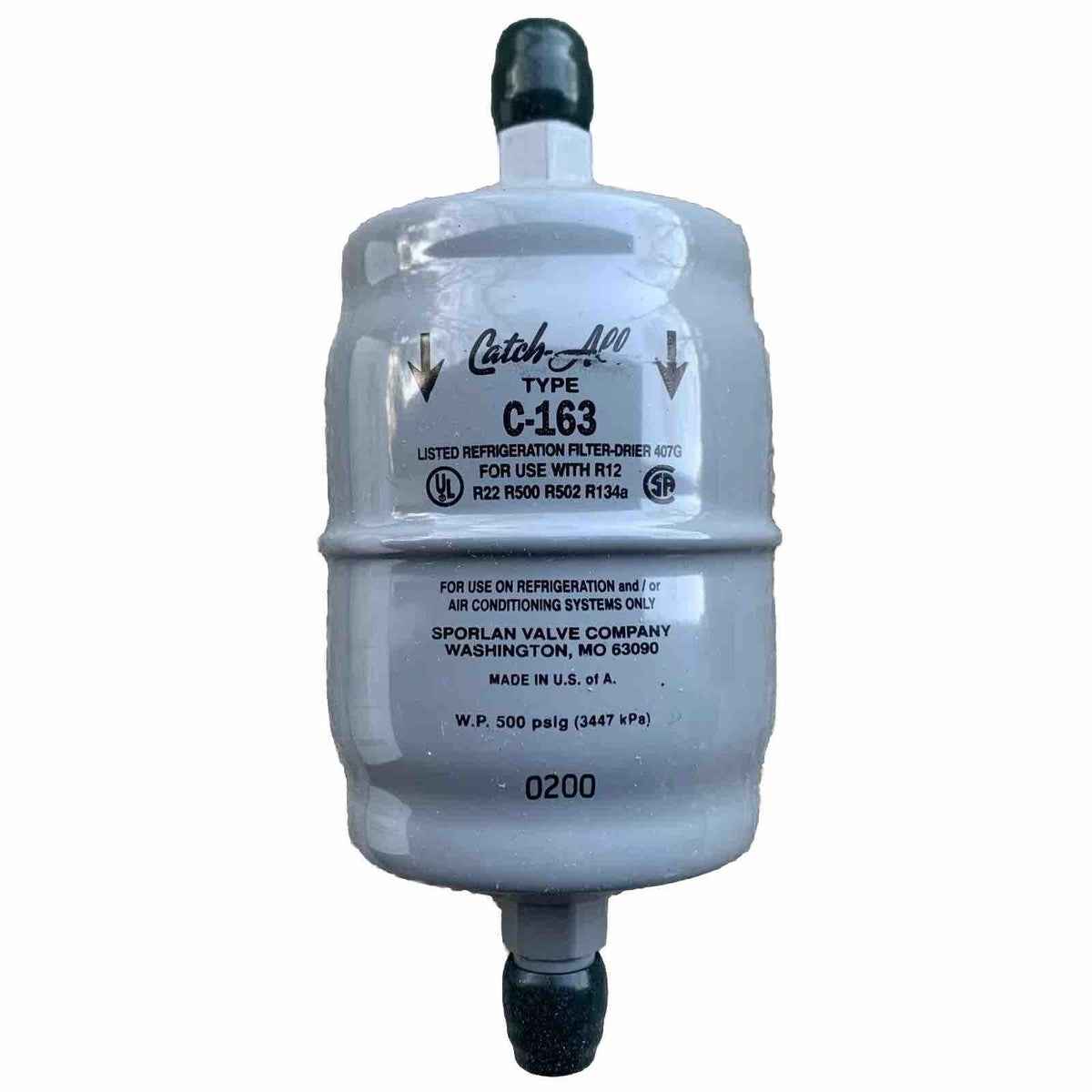

Sporlan C-163 | Catch-All Series Liquid Line Sealed Model Filter-Drier

The Sporlan C-163 Catch-All Series Liquid Line Sealed Model Filter-Drier provides reliable protection against moisture, acids, and solid debris, ensuring the efficiency and longevity of HVAC&R systems. With a high-performance desiccant and excellent filtration, it’s perfect for systems up to 5 tons.

Specifications:

• Connection Size: 3/8" ODF Solder
• Cubic Inches: 16
• Nominal Capacity: 3/4 to 5 tons
• Refrigerant: R-410A
• Max Operating Pressure: 650 PSI
• Markets: HVAC, Refrigeration, Food Service, Specialty & Ultra-low Temp, Transportation

Features:

• Contaminant Control: Removes moisture, acids, and debris for system protection
• High-Performance Desiccant: Excellent water and acid capacity
• Effective Filtration: Protects TEV and compressors
• Sizes Available: From 3 cu. in. to 60 cu. in.
• Activated Charcoal: Available for system clean-up
• Sightglass: CSG models for refrigerant inspection
• Compatibility: Works with HCFC, HFC, HFO, and HC refrigerants
• UL Listed: Rated for R-410A and CO2 use
• Compliance: RoHS, REACH, ATEX, PED compliant

Applications:

• Liquid line drying and filtering
• Hot gas defrost line filtering
