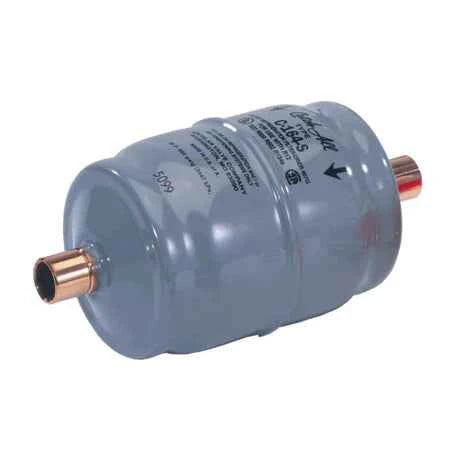

Sporlan C-163-S-HH | Catch-All Filter-Drier, 3/8" ODF Liquid Line

The Sporlan C-163-S-HH Catch-All Filter-Drier is designed for maximum performance in filtering moisture, acids, dirt, and wax from refrigerants. Featuring a blend of desiccants and activated charcoal, it provides effective filtration for HVAC and refrigeration systems.

Specifications:

• Model: C-163-S-HH 3/8 Copper Conn
• Capacity: 16 cu in
• Connection Size: 3/8" x 3/8" ODF
• Diameter: 3.00"
• Height: 3.1"
• Length: 7.8"
• Overall Length: 5.88"
• Weight: 1.52 lbs
• Max Pressure: 650 psi

Features:

• Leak-proof shell with copper sweat fittings
• Outlet safety filter
• Blended desiccants for moisture and acid removal
• Activated charcoal for wax removal
• Filters out scale, dirt, sludge, and contaminants
• UL Listed
• CAP and T designations for specific installations

Applications:

• Air Conditioning
• Commercial & Low-Temp Refrigeration
• Systems with wax contamination
• Compatible with HCFC and HFC refrigerants
