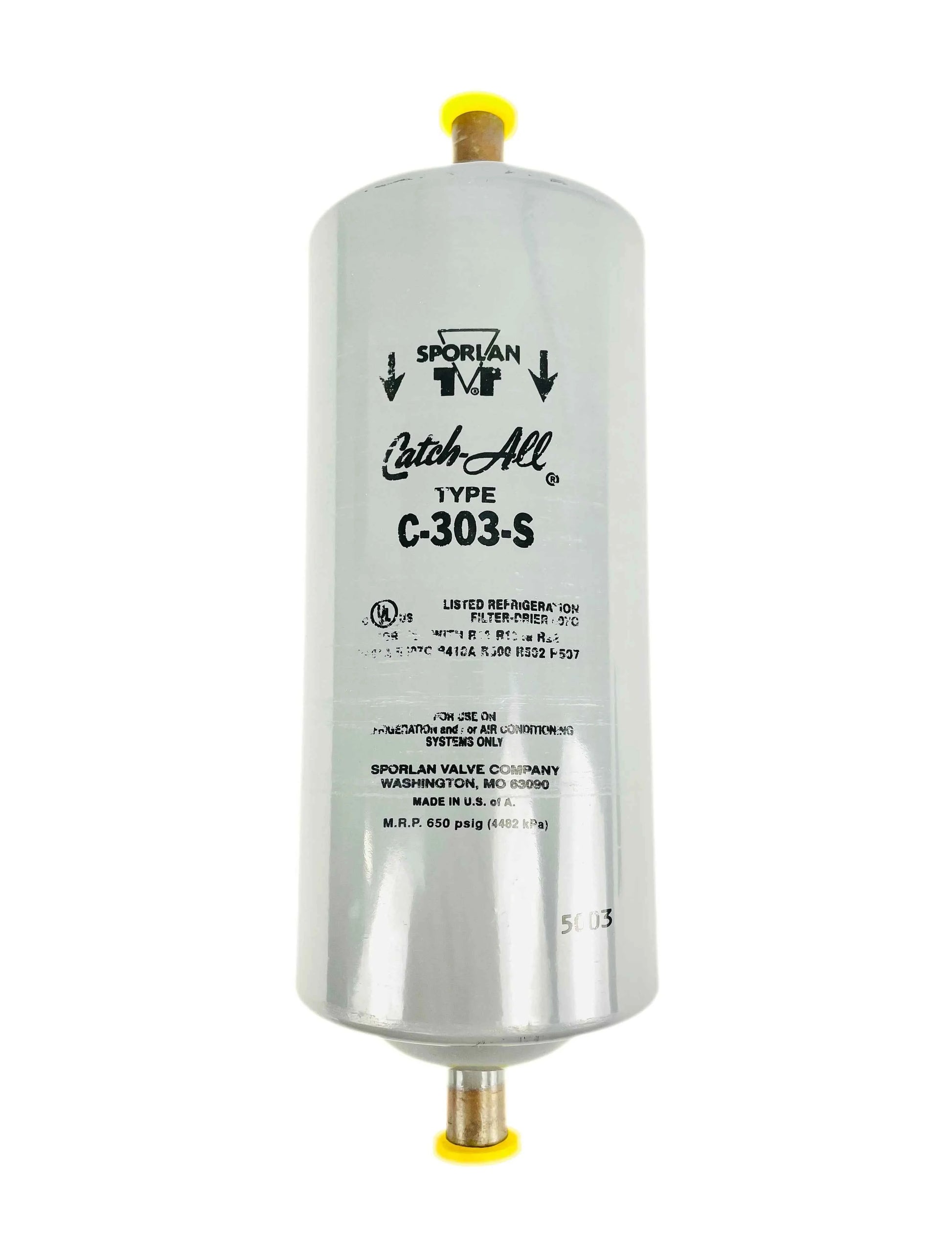

Sporlan C-303-S | Catch-All Filter-Drier, 3/8" ODF Liquid Line

The Sporlan C-303-S Catch-All® Filter-Drier is designed to effectively remove moisture, acid, and contaminants like scale, dirt, and sludge from refrigerant systems. Its leak-proof shell and high-performance desiccant core ensure optimal filtration while maintaining minimal pressure drop.

Specifications:

• Model: C-303-S 3/8 Copper Conn
• Capacity: 30 cu in
• Connection Size: 3/8" x 3/8" ODF
• Diameter: 3.00"
• Height: 3.5"
• Length: 11.5"
• Overall Length: 8.88"
• Weight: 3.10 lbs per unit
• Series: Catch-All
• Maximum Working Pressure: 650 psi
• Refrigerant Compatibility: For all commercially available HCFC and HFC refrigerant/lubricant combinations
• UL Listed

Features:

• Leak-proof shell
• Solid copper sweat fittings
• Outlet safety filter
• Molded porous core for efficient moisture and acid containment
• Filters scale, sludge, dirt, and foreign matter with negligible pressure drop
• Designed for capillary tube systems
• Schrader-type pressure tap on the inlet

Applications:

• Liquid line filtration for HVAC systems
• Ideal for commercial refrigeration and air conditioning
