Sporlan C-304 | Catch-All Liquid Line Filter-Drier (30 cu in, 1/2" SAE)

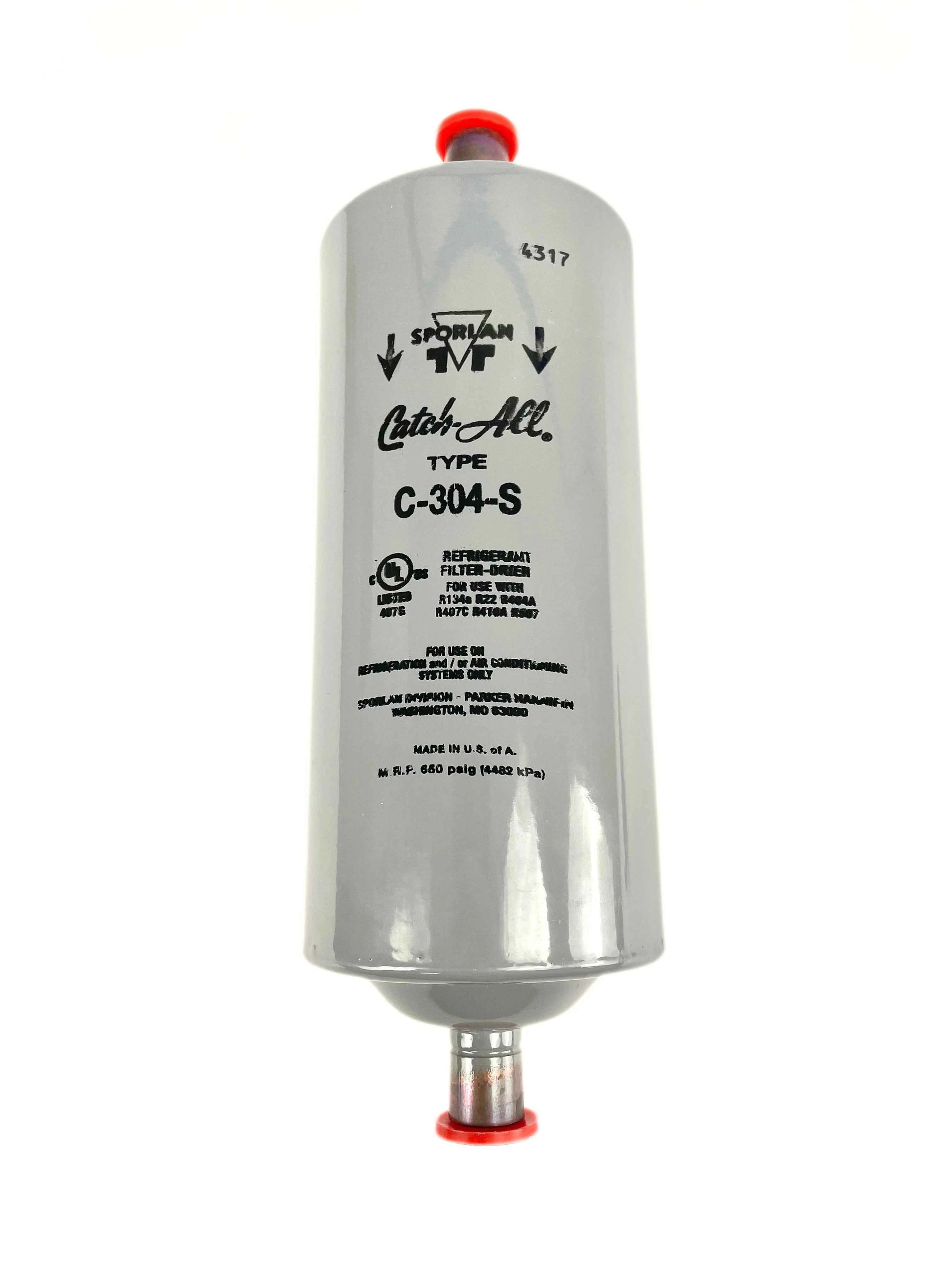

The Sporlan C-304 Catch-All Liquid Line Filter-Drier [Similar to item pictured] is designed to provide superior filtration and moisture removal in HVAC&R systems. With its leak-proof shell, solid copper sweat fittings, and highly effective desiccant core, it ensures reliable operation by capturing contaminants and absorbing moisture and acids.

Specifications:

• Capacity: 30 cu in
• Connection Size: 1/2" x 1/2" SAE
• Model: C-304
• Maximum Working Pressure: 650 psi
• Refrigerant Compatibility: HCFC and HFC refrigerant/lubricant combinations
• Series: Catch-All
• Application: Suitable for capillary tube systems (CAP) or systems with Schrader type pressure tap (T)

Features:

• Leak-Proof Shell: For durability and reliability
• Solid Copper Sweat Fittings: Ensures secure connections
• Porous Core of Blended Desiccants: Maximizes moisture and acid absorption
• Filtration: Effectively removes scale, solder particles, carbon, sludge, and dirt with minimal pressure drop
• Moisture & Acid Removal: Deep absorption and retention within desiccant granules

Applications:

• Compatible with all HCFC and HFC refrigerant/lubricant combinations. Ideal for residential, commercial HVAC, and refrigeration systems.
