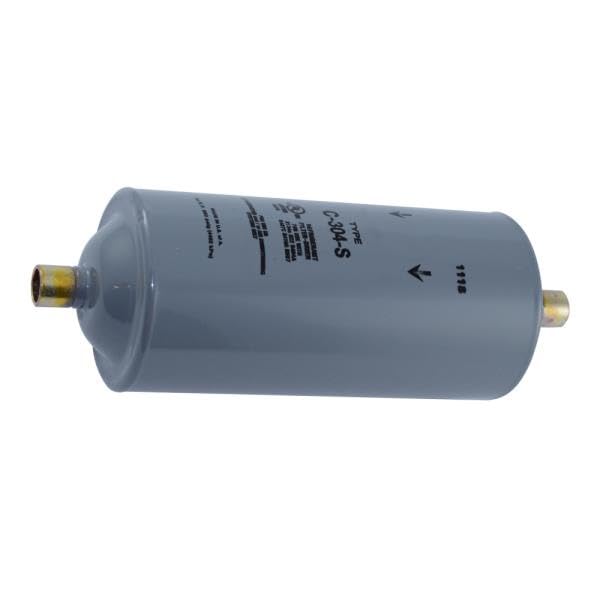

Sporlan C-304-S | Catch-All Filter-Drier, 1/2" ODF Liquid Line

The Sporlan C-304-S Catch-All Filter-Drier is designed to efficiently remove moisture, acid, and contaminants from refrigerant systems. With a durable, leak-proof shell, copper sweat fittings, and a high-efficiency desiccant core, it provides superior filtration with minimal pressure drop for reliable system performance.

Specifications:

• Model: C-304-S 1/2 Copper Conn
• Capacity: 30 cu in
• Connection Size: 1/2" x 1/2" ODF
• Diameter: 3.00"
• Height: 3.5"
• Length: 11.5"
• Overall Length: 9.00"
• Weight: 3.08 lbs per unit
• Maximum Operating Pressure: 650 psi

Features:

• Leak-proof shell with solid copper sweat fittings for durability and leak prevention
• Outlet safety filter for added protection
• Molded porous core of blended desiccants for maximum acid and moisture removal
• Filters contaminants such as scale, solder particles, carbon, sludge, dirt, and other foreign matter with negligible pressure drop
• UL Listed for safety and reliability
• Maximum working pressure: 650 psi
• Designed for all HCFC and HFC refrigerant/lubricant combinations
• CAP designation for capillary tube systems
• T designation for Schrader-type pressure tap on the inlet

Applications:

• Air Conditioning
• Commercial Refrigeration
• Low Temperature Refrigeration
• Capillary tube systems
• Suitable for HCFC and HFC refrigerants
