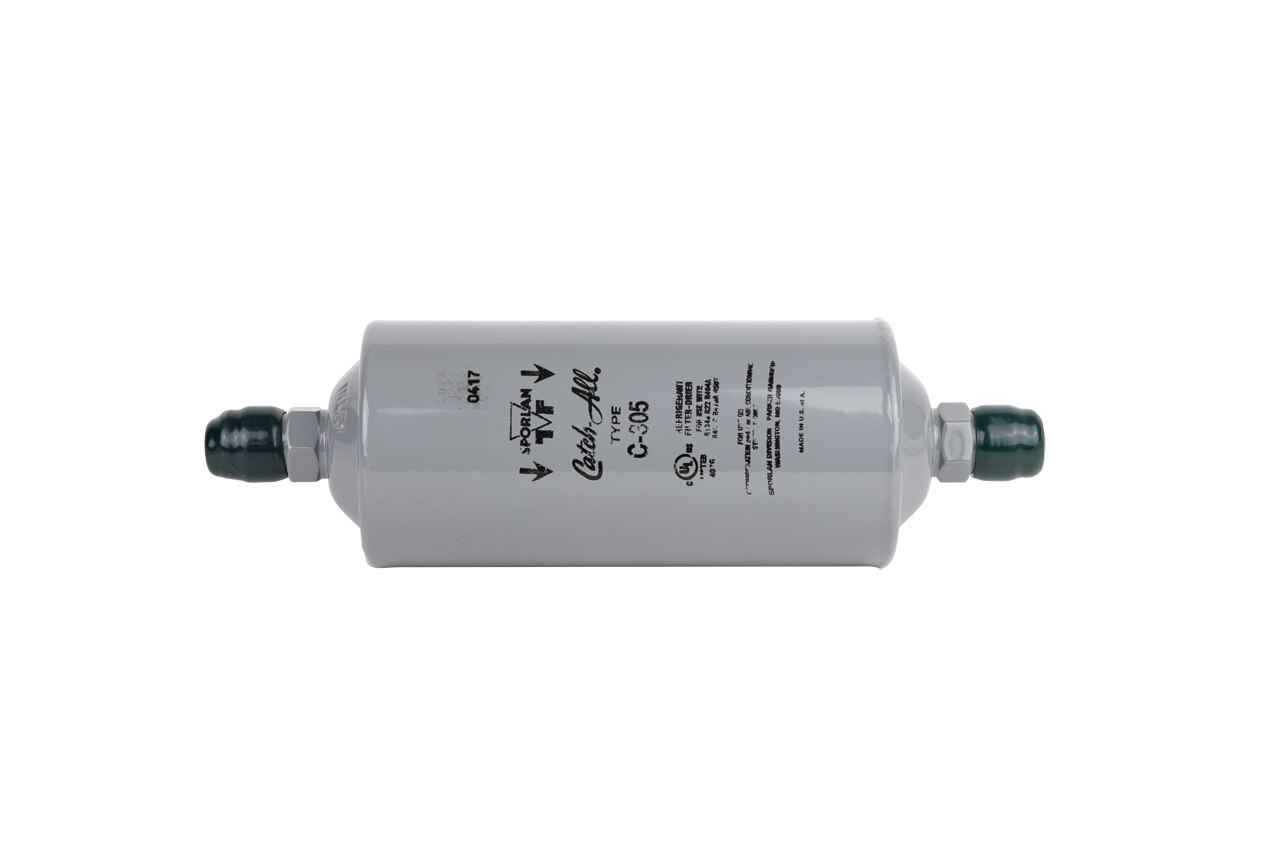

Sporlan C-305 | Catch-All Series Liquid Line Sealed Model Filter-Drier

The Sporlan C-305 Catch-All Series Filter-Driers are designed to protect HVAC&R systems by efficiently removing harmful contaminants like moisture, acids, and debris. These filter-driers ensure long system life, enhanced efficiency, and reliable performance in air-conditioning and refrigeration systems, with options suitable for systems up to 20 tons.

Specifications:

• Refrigerant Compatibility: R-410A, R-407F, R-22, R-507, R-134A, R-407A, R-407C
• Connection Type: SAE Flare
• Connection Size: 5/8"
• Capacity Range: Systems up to 20 tons
• Sizes Available: 3 cu. in. to 60 cu. in.
• Fitting Sizes: 1/4” to 1-1/8”
• Pressure Rating: UL Listed for 650 psig, R-410A and Sub-critical CO2
• Compliance: RoHS, REACH, ATEX, PED compliant

Features:

• Contaminant Control: Effectively removes moisture, acids, and solid debris, protecting system components.
• High-Performance Desiccant: High water and acid capacity for reliable operation.
• Porous Molded Core: Excellent filtration for system protection.
• Activated Charcoal Models: Available for system clean-up.
• Integrated Sightglass (CSG Models): Allows visual refrigerant and moisture monitoring.
• Multiple Fitting Options: SAE flare and copper ODF fittings available.
• Versatile Refrigerant Use: Suitable for HCFC, HFC, HFO, and HC refrigerants.

Applications:

• Liquid Line Drying & Filtering: Removes moisture and solid contaminants from the liquid line.
• Hot Gas Defrost Line Filtering: Ensures efficient defrosting in refrigeration systems.
